What Are French Drains?
French drains provide an effective underground drainage solution that redirects water away from homes and properties through a simple yet powerful system of pipes and gravel.
How French Drains Work
A French drain consists of a perforated pipe surrounded by gravel or rock. Water flows into the pipe through small holes and travels along the natural slope of the installed system.
The trench containing the pipe is lined with landscape fabric to prevent soil from clogging the system. Gravel fills the space around and above the pipe, allowing water to filter through easily.
Water always follows the path of least resistance, making French drains highly effective at collecting and moving groundwater. The drainage pipe carries water to a designated outlet point, such as a street drain or dry well.
Types of French Drains
Surface French Drains
- Installed in shallow trenches
- Ideal for yard drainage
- Visible from ground level
Subsurface French Drains
- Buried 2-3 feet underground
- Perfect for basement protection
- Hidden from view
Curtain Drains
- Installed on slopes or hillsides
- Intercept water before reaching structures
- Help prevent erosion
Common Applications
We install French drains to solve various drainage problems around Wichita homes. They excel at preventing basement flooding by intercepting groundwater before it reaches foundation walls.
French drains effectively manage excess water in:
- Soggy yard areas
- Around foundation perimeters
- Near driveways and walkways
- Behind retaining walls
These drainage systems work particularly well in clay-rich Kansas soils that don't naturally absorb water quickly. They can be integrated with existing gutter systems to create comprehensive water management solutions.
French Drain Installation Services in Wichita
We specialize in professional French drain installations to protect Wichita properties from water damage and drainage issues. Our expert team delivers customized solutions backed by years of local experience.

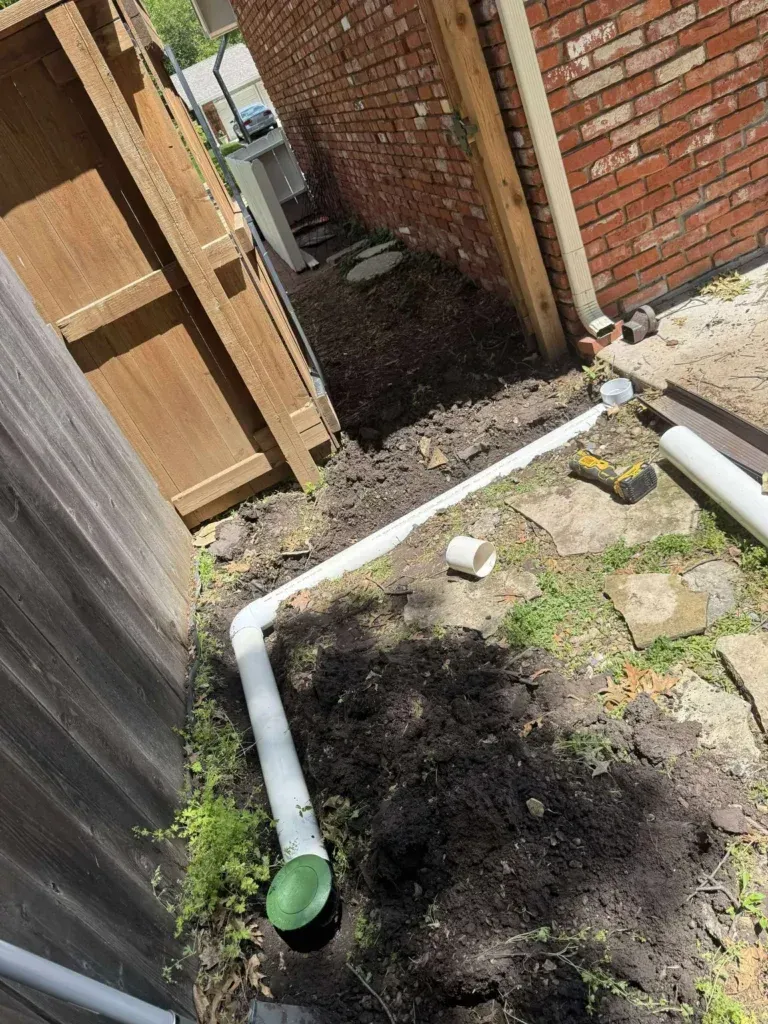

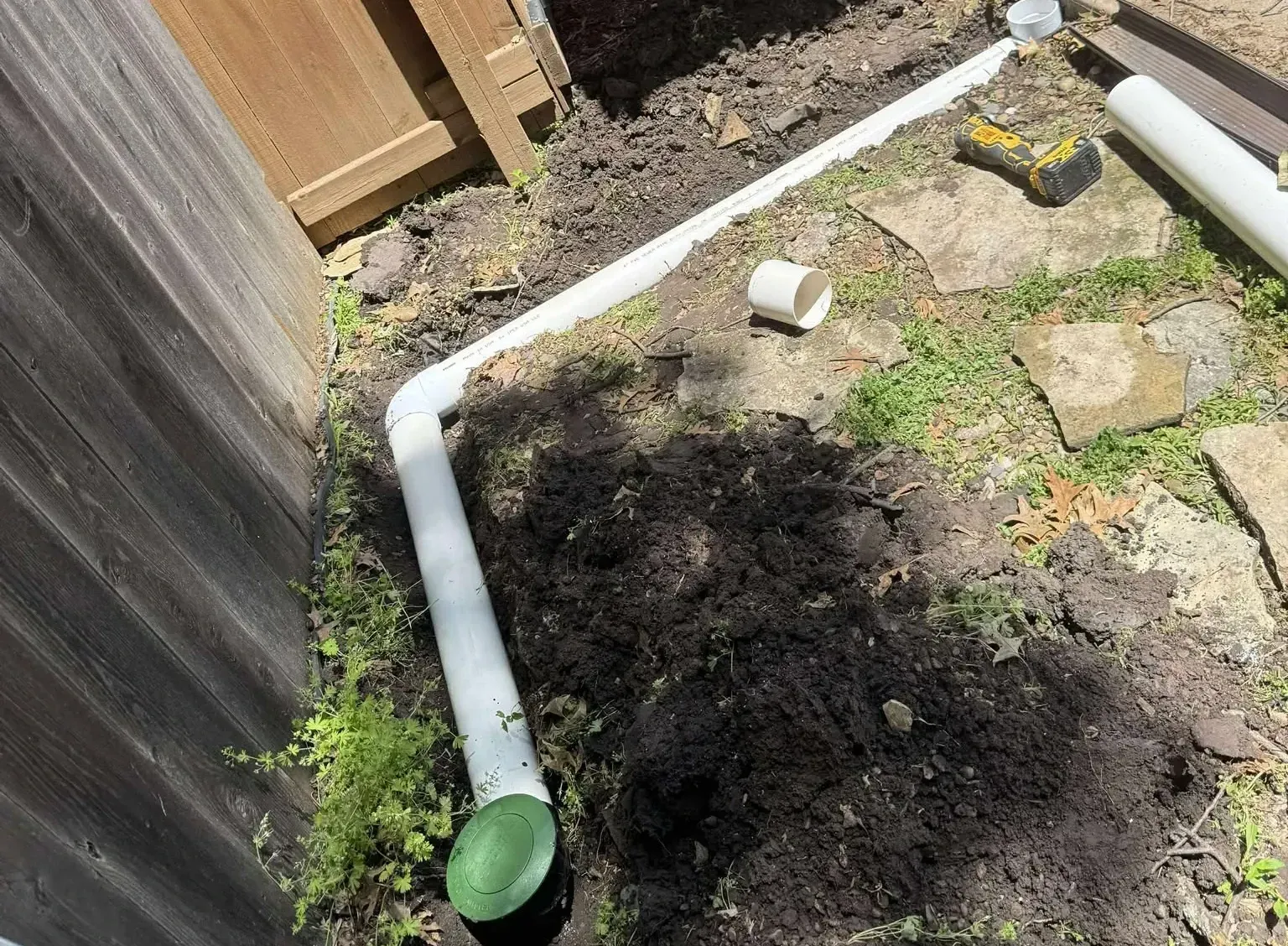

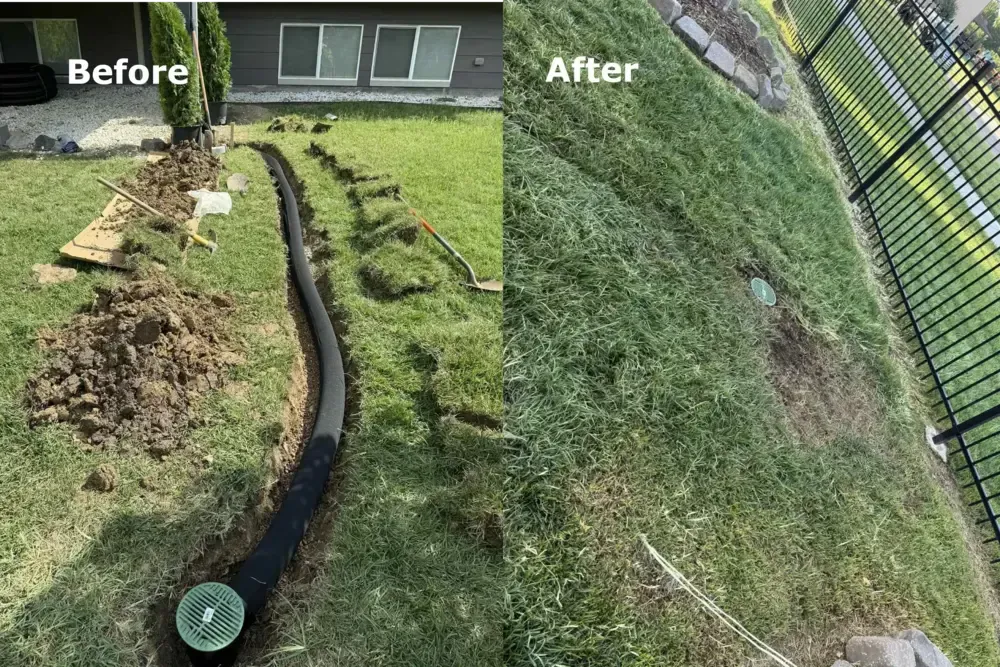

Our Underground Drainage System Installation Process
We begin each underground drainage system project with a thorough property assessment to determine optimal placement and design specifications. Our certified technicians map out the drainage path and identify potential obstacles.
The installation starts with precise trench excavation at the calculated depth and grade. We use commercial-grade materials including perforated pipes, gravel, and specialized filter fabric.
Each component is carefully positioned to ensure proper water flow. The gravel layer surrounds the pipe to facilitate drainage while the filter fabric prevents soil infiltration.
We complete the installation by grading the surrounding area to direct surface water toward the drain system. Quality checks verify proper functionality before final cleanup.

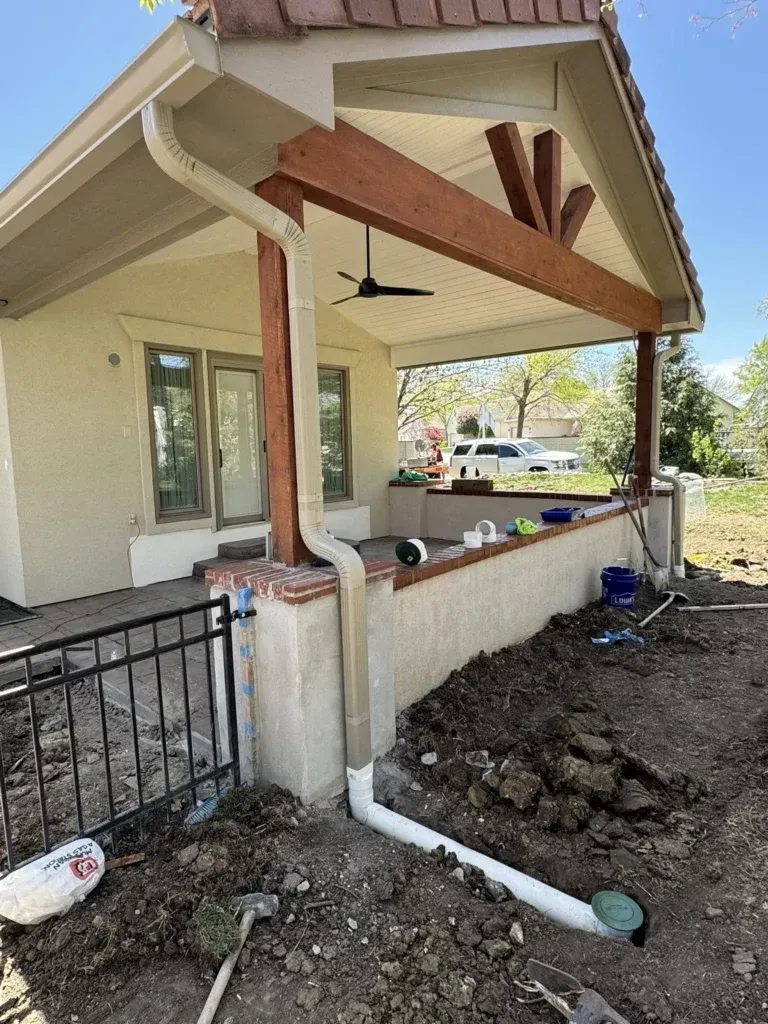

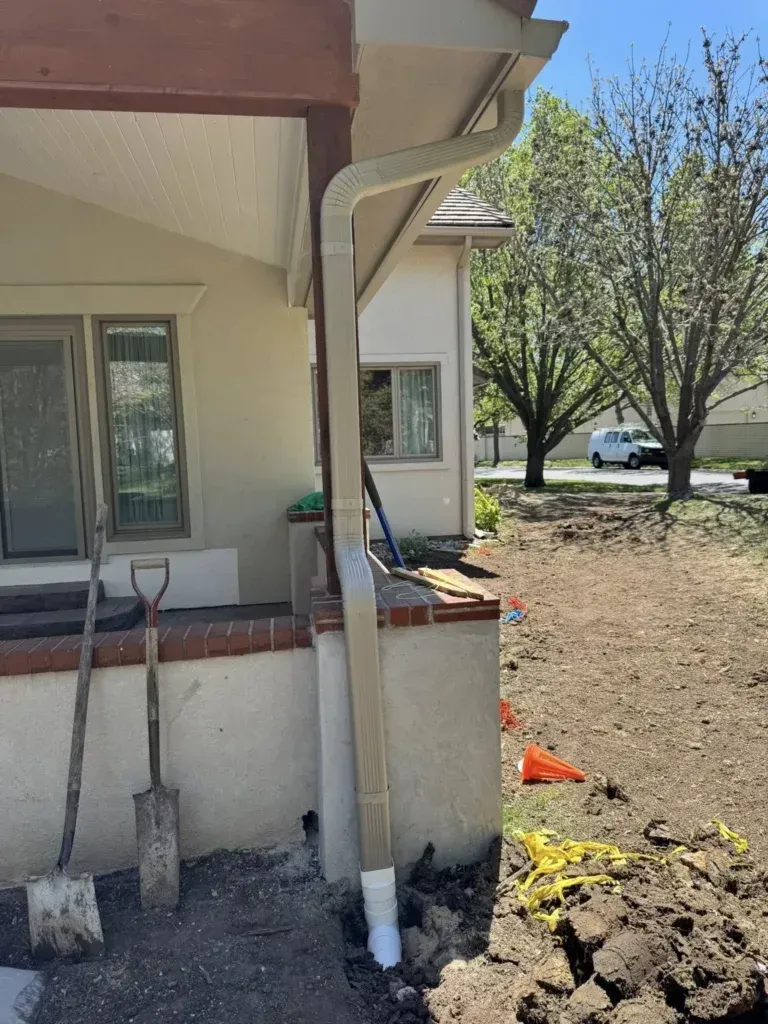

Custom Underground Gutter Solutions for Wichita Properties
Every property has unique underground gutter drainage requirements based on soil composition, slope, and existing structures. We design French drain systems that account for Wichita's specific soil conditions and rainfall patterns.
Our solutions incorporate appropriate pipe sizes and gravel types matched to your property's needs. For homes with basements, we position drains strategically to protect foundation walls.
Commercial properties receive scaled-up systems capable of handling larger water volumes. We factor in parking lots, landscaping, and building footprints when planning drain placement.
Signs Your Property Needs a French Drain
Common indicators of drainage problems:

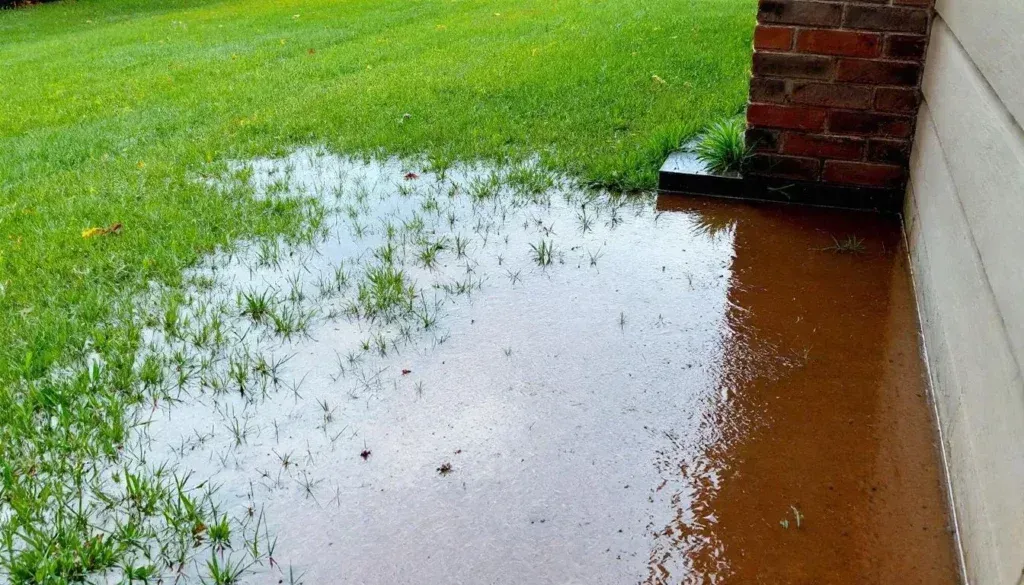

- Standing water in yards or gardens
- Wet basement walls
- Soil erosion around foundations
- Pooling water near structures
- Soggy landscaping that doesn't dry
Foundation damage risks increase when water consistently collects near your building. Proper drainage becomes critical during Wichita's heavy rain seasons.
Signs of poor grading often appear as water flowing toward buildings instead of away from them. Early intervention with French drain installation can prevent costly structural repairs.
